Details:
- System Type: Axle-Back
- Muffler Type: Touring
- Tip Size: 4.5 Inch
- Tip Finish: Diamond Black
- Tip Style: Double Walled Slash Cut
- Tip Quantity: Quad
- System Material: 304 Stainless Steel
- Pipe Diameter: 3 Inch
- NPP Valve Function: No
Features:
- No compromises: all muscle, zero drone (with Touring Edition)
- Touring Edition features AWE's proprietary straight-through drone-canceling solution, 180 Technology
- Handcrafted from 3 U.S.-sourced CNC mandrel-bent .065 wall T304L stainless steel
- Less is more: clean, non-baffled, straight-through design maximizes performance

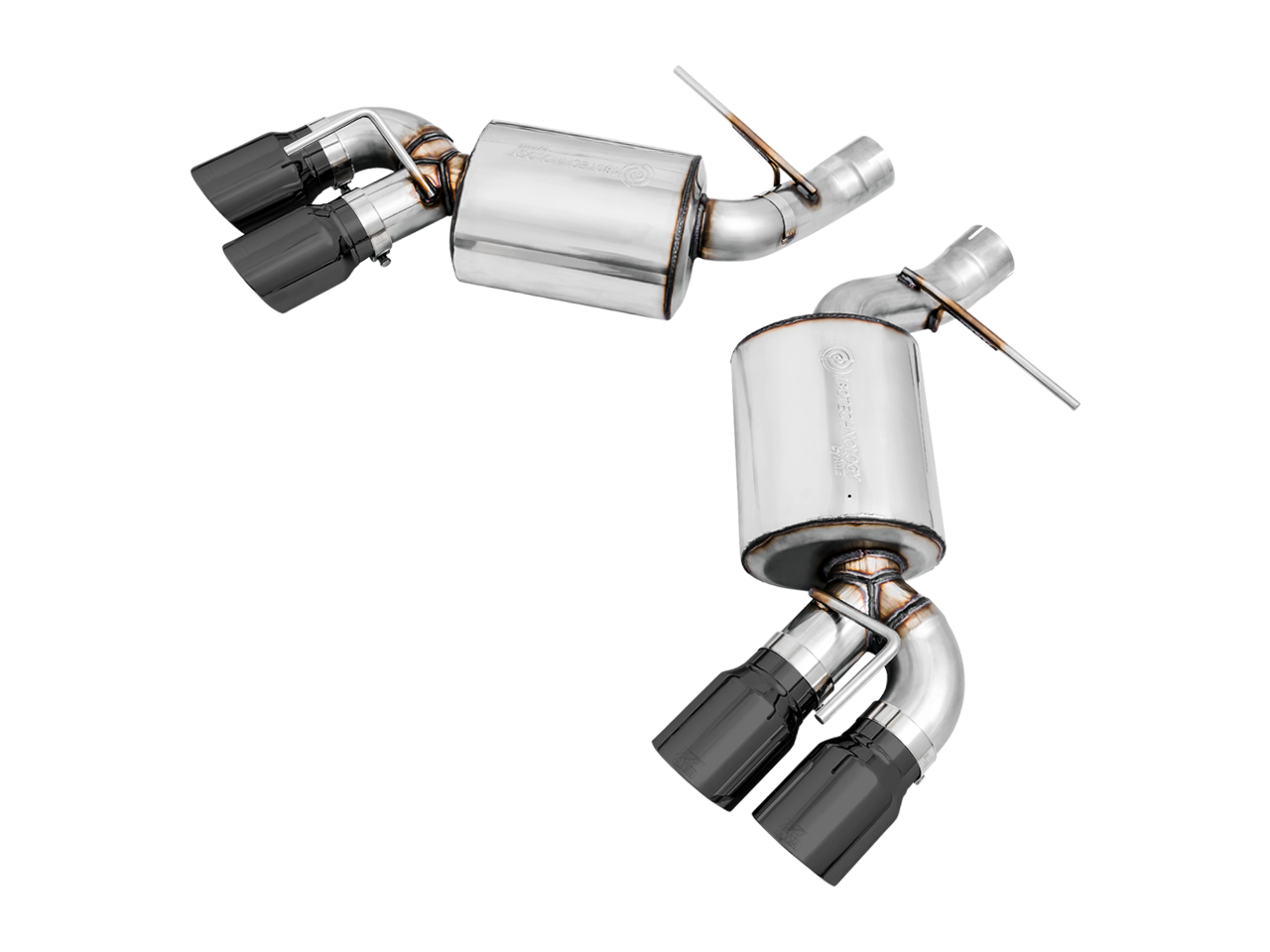

In axle-back form, the AWE Touring Edition Exhaust retains the SS factory mid-section, coming in right at the rear axle. The axle-back AWE Touring Edition Exhaust maintains a 3 diameter, shaves weight from the rear, and features AWEs drone-canceling solution, 180 Technology.
As exhaust gases exit the Camaro SS 6.2L engine and flow into an AWE 180 Technology equipped resonator, they pass through strategically located ports, and into reflection chambers. Sound waves, carried by these exhaust gasses, bounce off the walls of the reflection chambers. By controlling the size and location of the ports and the chambers, we also control when the sound waves exit the chambers. The specific timing of when the reflected sound waves rejoin the main exhaust flow creates a one-hundred-and-eighty-degree out-of-phase sound wave that cancels out problematic frequencies. Call it science, call it magic, or call it 180 Technology by AWE.
Note: Cutting of the factory system is required for proper fitment.
Installation Instructions (opens in new tab): Click HERE
Part Number: 3015-43115
