Details:
- Finish: Red
- Position: Front & Rear
- Diameter: 29mm & 32mm
- Adjustable: Yes
- Material: Steel
- Bushing Included: Yes
- Bushing Type: Polyurethane
- Durometer: 88
Features:
- Manufactured from 29mm (Front) and 32mm (Rear) DOM steel tubing
- Designed for 2012 Camaro SSÂ’s with FE3 front/FE4 rear suspension
- Greaseable 88-durometer polyurethane bushings
- Thrust washers allow for proper location of the sway bar and prevent lateral movement
- Cold-formed to better resist torsional fatigue
- 3-hole adjustable front and rear bar
- Increases sway bar rate and allows for fine tuning of your CamaroÂ’s handling characteristics
- Dramatically reduces body roll
- Greater sway bar control allows for better handling of your vehicle

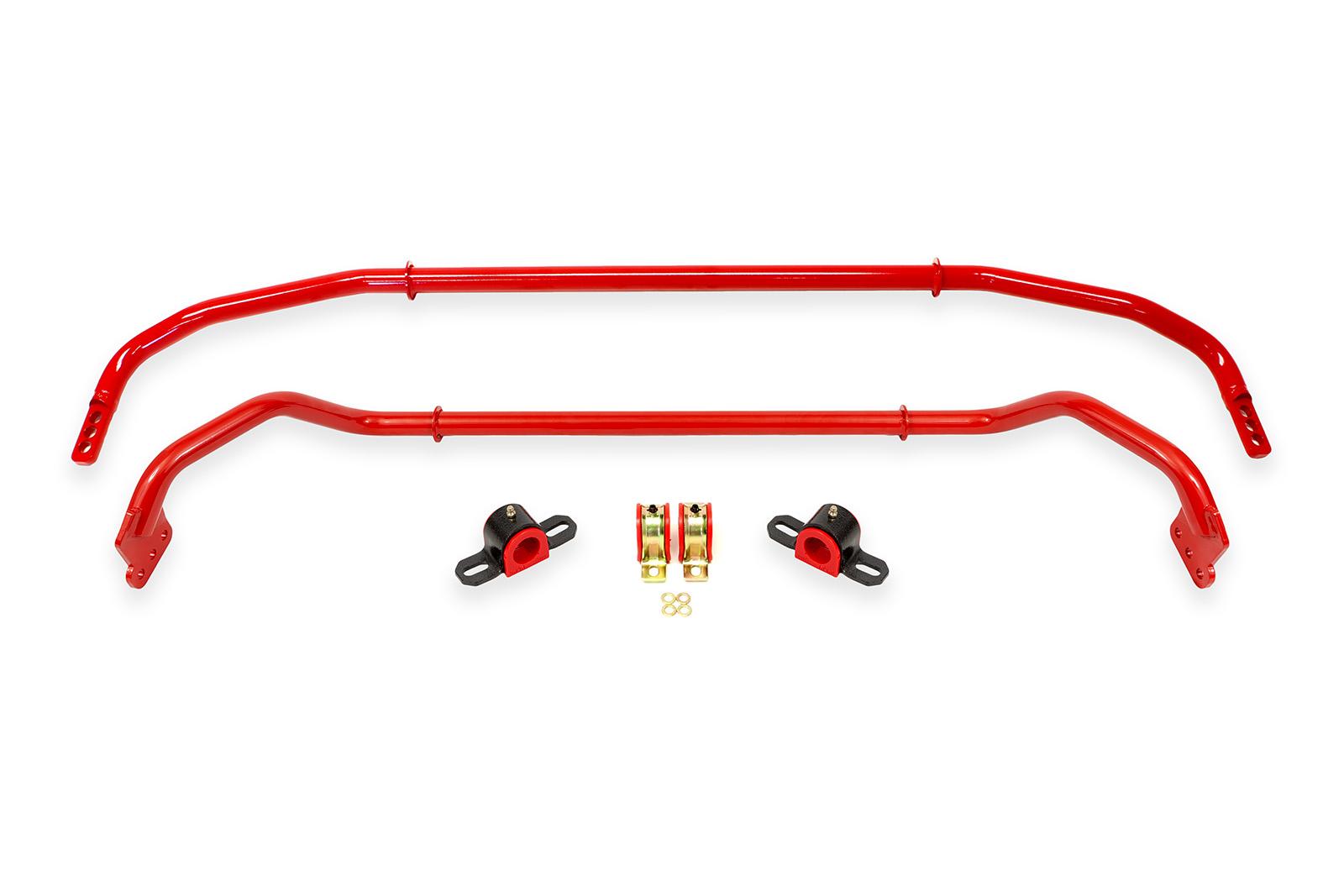

Reduce body roll and improve the handling of your Camaro with a Sway Bar Kit from BMR Suspension! Stock sway bars have low torsional spring rates because they are manufactured from small diameter bar stock or tubing. BMRÂ’s Sway Bar Kit (SB037) increases sway bar rate over the OE bars and is designed for street performance, autocross, and road racing applications.
Note: BMRÂ’s SB037 is not compatible with 2012 ZL1s due to the electric power steering rack and recommends the SB039 instead.
Note: BMRÂ’s SB037 is not compatible with convertible Camaros or Camaros equipped with V6s due to the SB033 rear bar.
Note: BMRÂ’s SB033 rear bar inside kit SB037 is designed as a direct replacement for FE4 rear suspension systems where the sway bar end links are located outboard of the rear shocks. 2010-2012 Camaro SSÂ’s may upgrade to this FE4 bar if the rear lower control arms and rear sway bar end links are upgraded to FE4 spec.
Below are rate specs compared to available OE bars:
- Front Bar (SB016)
- Hole 1 = 100% increase in sway bar rate
- Hole 2 = 145%
- Hole 3 = 214%
- Rear Bar (SB033)
- Hole 1 = 100% increase in sway bar rate
- Hole 2 = 150%
- Hole 3 = 200%
- OE ZL1 Bar (FE5)
- Hole 1 = 25% increase in sway bar rate
- Hole 2 = 40%
- Hole 3 = 75%
Installation Instructions (opens in new tab): Click HERE
Part Number: SB037R
