Details:

• Nominal Flow Rate: 1728cc/min @ 3.0 Bar (43.5 psi), Using E10 Emissions Certification Fuel at 49 Degrees C (120F)
• Maximum Differential Fuel Pressure: 7.0 Bar (101.5 psi)
• Fuel Compatibility: Compatible with Methanol/Ethanol/MTBE/Nitromethane/All Known Hydrocarbon Fuels
• Electrical Connector: USCAR



Features:

• Easy installation
• No modification required
• Tune required

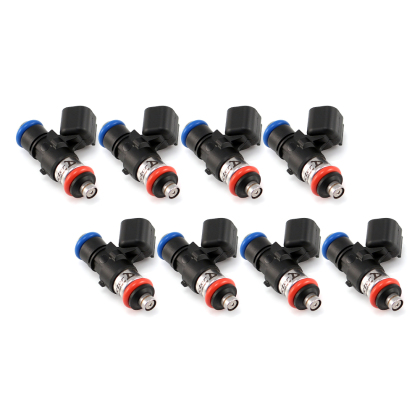

The ID1700x is the most recent offering from the partnership of Injector Dynamics and Bosch Motorsport. The ID1700x was designed to fill the gap between the ID1300x and the ID2000, and like the ID1300x, it features corrosion resistant internals making it compatible with all known automotive fuels.



A unique magnetic circuit, resulting from a lengthy development program, makes the ID1700x immune to voltage and pressure sensitivity problems that plague other high impedance high flow injectors. The ID1700x excels at high pressures typical of current automotive systems, and will perform flawlessly in these applications.





Emissions Disclaimer: This product is NOT CARB legal and CAN NOT ship to California.





Part Number: 1750.34.14.15.8
