Details:

• Catch Can Finish: Black
• Catch Can Capacity: 3 oz



Features:

• Single Can Mounts with the PCV System to Separate Oil from Air Using a 50-Micron Bronze Filter
• Helps Reduce Carbon Buildup on Intake Valves
• Patented Billet 6061 Aluminum Can Sealed with Viton O-Rings
• Installs in Under 30 Minutes
• Robust, Application-Specific Bracket Mounts the Can in a Serviceable Location
• Includes Pre-Molded Hoses with Factory Quick-Disconnect Fittings for Simplified Installation
• Defends Intake System and Essential Engine Components from Oil Blow-By
• CNC-Machined Aluminum Barbed Fittings Ensure a Sturdy Connection Between Lines and Can
• Catch Can has a 3 Oz. Capacity for Longer Serving Intervals
• Internal Air Diverter Increases Air Turbulence to Improve Oil Separation
• Helps Maintain Proper Octane Levels to Reduce Potential Detonation
• Filter and Can are Fully Serviceable

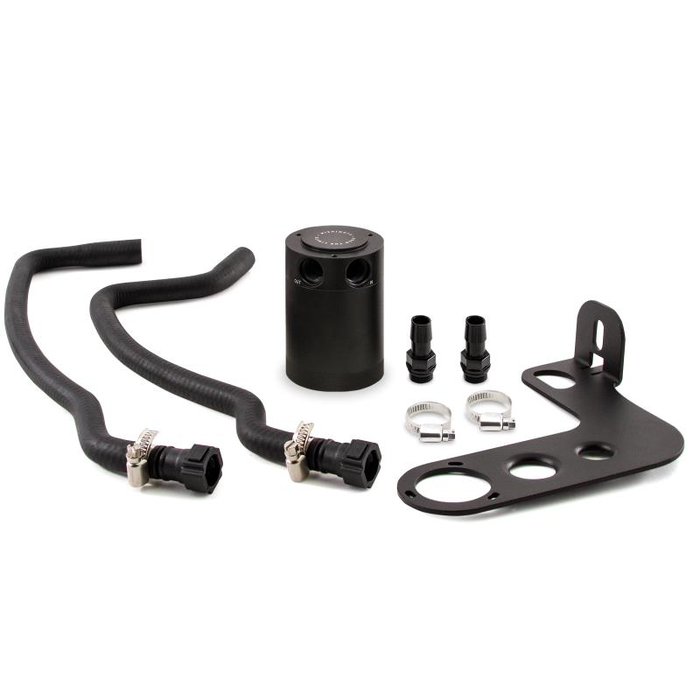

The LS3 engines fitted to the automatic 5th Gen Camaro SS generate an impressive 400+ horsepower from their eight cylinders. But those eight cylinders produce something a little less impressive: blow-by. Oil, fuel, and other by-products of combustion squeeze their way past piston rings with each stroke. Left unchecked, that blow-by can work its way into your Camaro's intake and rob the engine of power and efficiency. Enter the Mishimoto 2010-15 Camaro SS LS3 direct-fit catch can kit.



Mishimoto catch cans feature air diverters and an internal baffle to help slow incoming air, condensing oil and fuel vapors. To further prevent any blow-by from escaping, the catch can outlet employs a 50-micron bronze filter. This kit will ensure that blow-by vapors never make their way back into your intake.The catch can mounts to your automatic Camaro via a bracket that has been custom designed to fit without any drilling or cutting. Direct-fit lines, complete with quick-disconnect fittings, mate Mishimoto can to your factory Chevrolet PCV system for an easy and seamless install.



Mishimoto catch cans are different from most air-oil-separator (AOS) systems on a few levels. First, Mishimoto catch cans are not heated. This means that all of the blow-by is able to condense in the can, including low-octane oil vapors and contaminated fuel vapors. Most AOS systems also drain the blow-by back into the oil pan, while Mishimoto catch cans trap the blow-by and keep it out of the engine permanently. If you've seen what we've seen in the bottom of Mishimoto catch cans, you won't want that draining back into your oil either.





Note: Fits the LS3 engine, to have the LS3 engine your Camaro would be an Manual transmission.





Installation Instructions (opens in new tab): Click HERE





Part Number: MMBCC-CSS-10PBE
