Features:

• Tripple Pump, Three 490LPH
• Supports 1900+rwhp on e85 and 2500 on gasoline
• Drop In-Tank Design
• CNC Machined Top Hat
• Anodized Black Finish
• -10 ORB Feed
• -8 ORB Return
• Requires the use of a Return Style Regulator and Return Line
• Incorporates OEM Jet Siphon System, Fuel Level Sender, and Vent

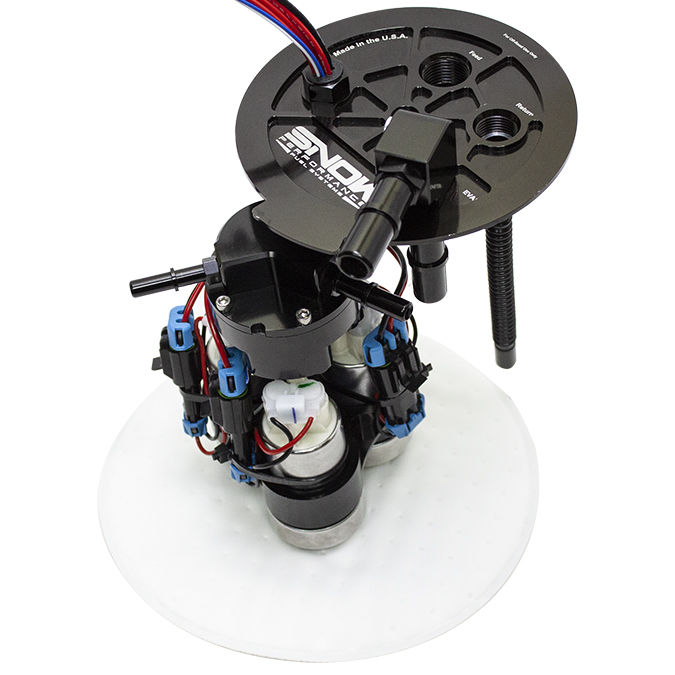

The Snow Performance Multi-Pump Fuel Hats feature a billet aluminum manifold with CNC machined passages, making these the nicest high-output fuel pump upgrades on the market! This design eliminates the need for hose clamps and rubber or plastic lines that can deteriorate and cause problems. No detail has been overlooked with these assemblies. The CNC machined bodies hold the fuel pumps securely and feature Viton chemical-resistant O-rings and guarantee a perfect leak-free fit.



Snow Performance Fuel Hats are engineered, CNC machined, and built in the USA from 6061 billet aluminum. These billet hats receive a black anodized finish for the ultimate durability and corrosion resistance, making them compatible with E85 and other harsh fuels.



Snow fuel hats feature female 10AN ORB feed and 8AN ORB return ports. 90-degree swivel adapter fittings are sold separately to adapt to your desired combination of 10AN, 8AN, or 6AN lines. To meet your specific vehicle's fuel demands, these pump assemblies are configurable with a combination of 2 or 3 fuel pumps. No knock-off pumps here. Get OE reliability with genuine TI Automotive (Walbro) fuel pumps in your choice of flow rates (450 LPH, 470 LPH [AKA HELLCAT 525], or 490 LPH [AKA 535 LPH]).



These fuel pumps are designed for a return-style installation only. Do not attempt to run these pumps in a returnless application. These pumps are compatible with 100% Gasoline, 100% Ethanol, or any blend of Gasoline and Ethanol (E10, E85, E98, for example). These pumps are NOT compatible with methanol.



For street-driven applications, combining a smaller fuel pump with one or two larger fuel pumps can be beneficial. This allows you to street drive on the smaller fuel pump, which has a lower amp draw and does not generate as much heat. Once you get into boost, the larger pumps can be activated to support your high horsepower needs. The easiest way to do this is to use a Snow Performance Boost activated pressure switch (part # SNO-81014) and a Snow Performance Multi-Pump Relay Module (part # SNF-20003).





Note: Pump are NOT compatible with Methanol.





Note: Technical wiring is required for proper operation.





Note: Fittings and additional plumbing items are not supplied in kit.





Installation Instructions (opens in new tab): Click HERE





Emissions Disclaimer: This product is NOT CARB legal and CAN NOT ship to California.





Part Number: SNF-52501X
