Details:
- Finish: Black
- Position: Tie Rod
- Diameter: N/A
- Adjustable: Yes
- Material: Aluminum
- Bushing Included: Yes
- Bushing Type: Spherical Bearings
Features:
- Gun drilled and Black Anodized 2024 Aluminum links to reduce unsprung weight
- Blue Anodized Titanium socket head cap screws
- Rotating 6061-T6 Aluminum Clamp design
- Hardened JMX high misalignment low friction 3 piece Teflon lined FK Heim joints/rod ends
- Stainless steel anti dive spacers
- ASTM A574 socket head cap bolts used for maximum articulation with minimum tensile strength of 170,000 psi
- Sold as a Pair (2)

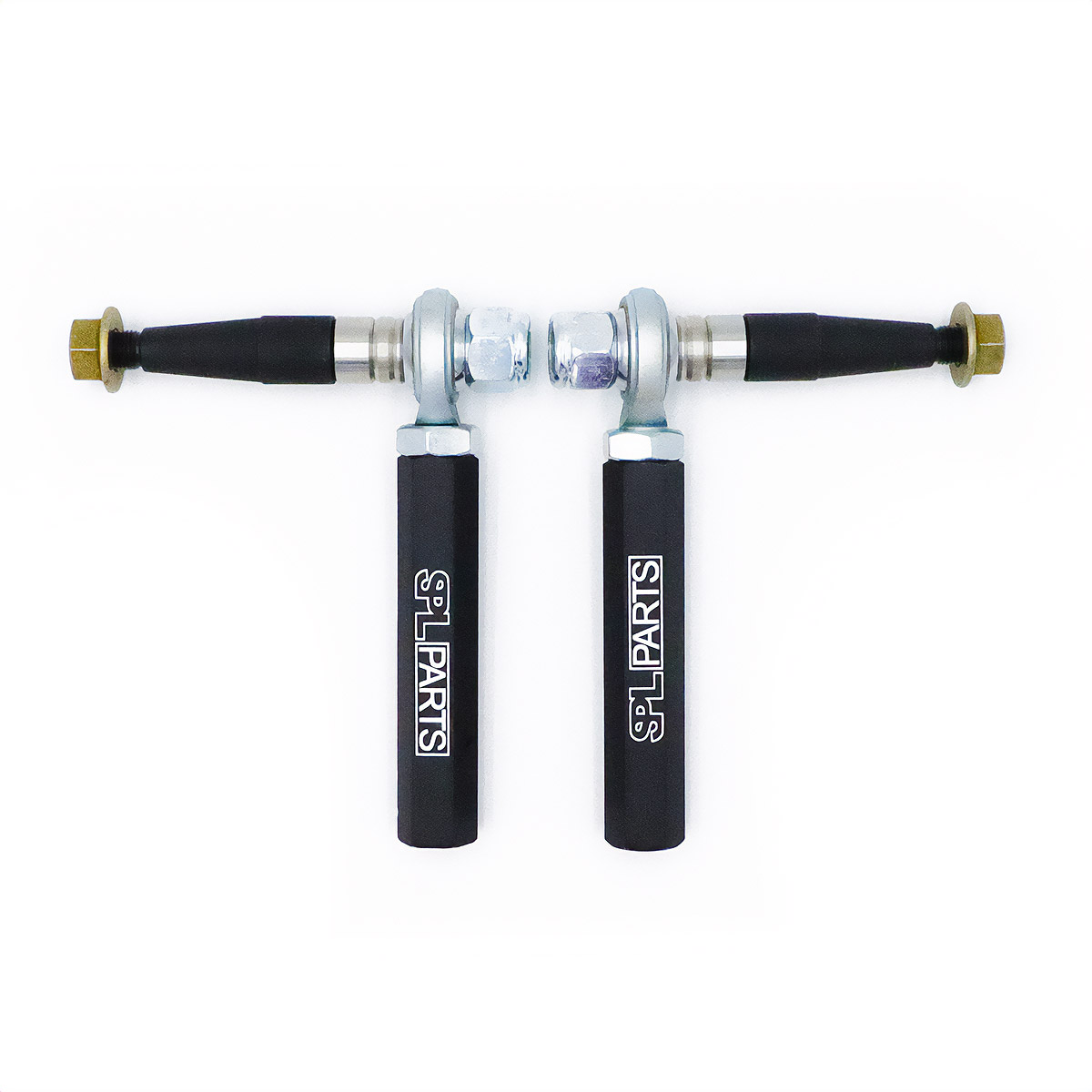

SPL Parts Camaro Front Tie Rod Ends (TRE) allow the tie rod end pivot to be relocated, which will correct bump steer resulting from modified caster or lower arm geometry, thus reducing lap times. On cars that are lowered significantly, relocating the pivot point will also keep the tie rod end from binding, thereby preventing the inner tie rods from breaking or bending. Precision CNC machined and heat treated 4140 Chromoly shanks are utilized to handle the abuse of racing and drifting. Also features Stainless Steel spacers and Black Anodized 2024-T351 Aluminum alloy turnbuckles for lightweight strength. Teflon lined high misalignment FK Rod Ends prevent tie rod end binding on lowered cars offering 19 degrees of articulation.
Note: These are made to work with 19-20" wheels. 18" wheels will require cutting the stud to prevent contact with the barrel of the wheel.
Installation Instructions (opens in new tab): Click HERE
Part Number: SPL TRE CAM6
